How to Setup Cash Drawer

    Setup POS-X EVO-Cash-Drawer

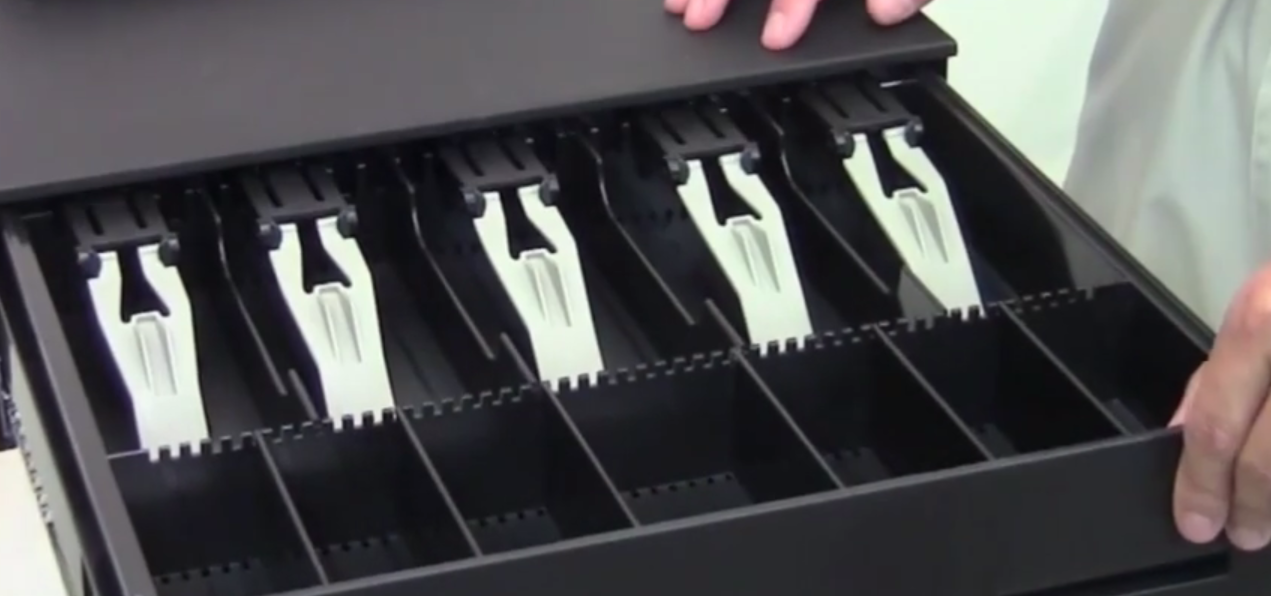

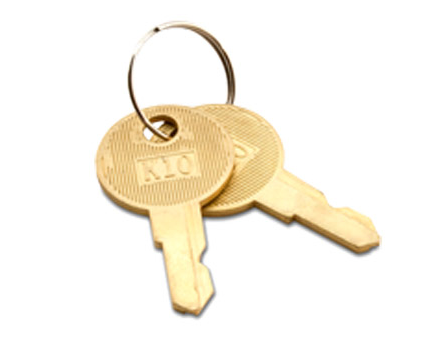

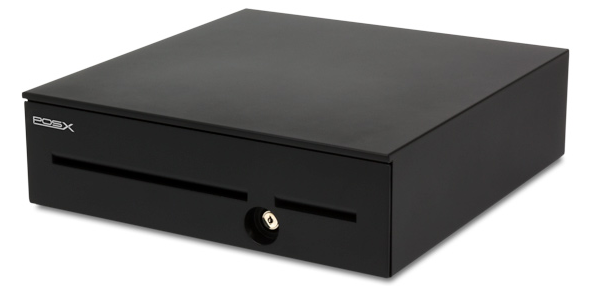

    1. Unpack the POS-X EVO-Cash-Drawer.  Includes cash drawer, keys, and quick start guide.
      More info here.

      pos_cash_drawer.png  pos_keys.png

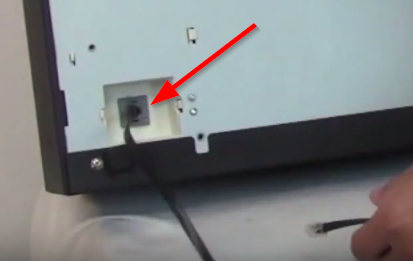

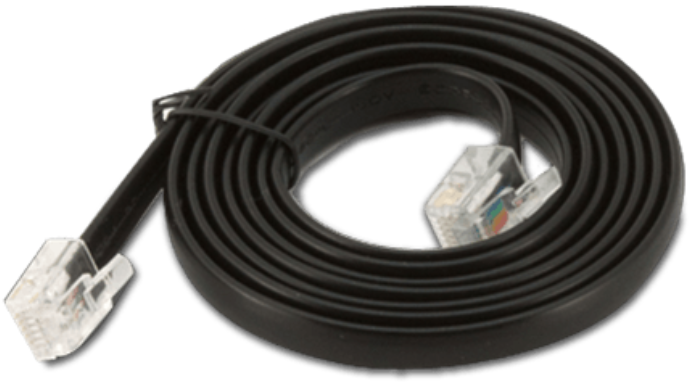

    2. Connect a cash drawer cable/printer interface cable from the bottom of the drawer to your receipt printer.

      pos_cash_drawer_cable.png    pos_cash_drawer_plug2.png

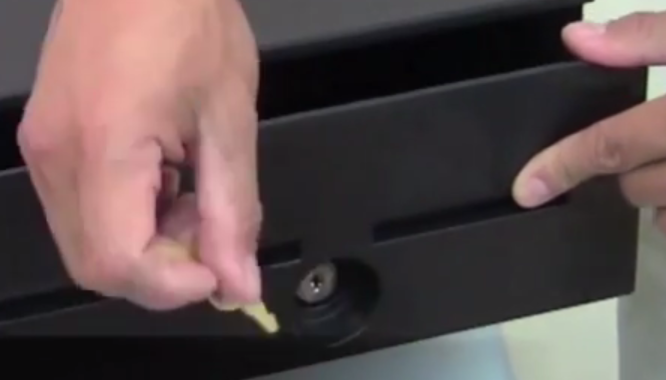

    3. Key lock has three positions:  Open, Locked, and Printer mode.  Set to Printer mode to have the drawer open automatically when the print button is pressed on the POS. Store keys in a safe place.


    4. Watch this video for more resource information on the POS-X EVO-Cash-Drawer.
